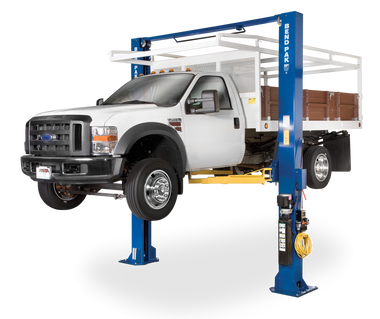

BENDPAK XPR-15C 15,000 LB. CAPACITY, CLEARFLOOR, STANDARD ARMS TWO POST LIFT

$6,895.00

15,000-lb. lifting capacity
CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
Padded overhead safety shutoff bar
Extended height top-beam provides greater overhead clearance
Single-point safety release
Dual direct-drive hydraulic cylinders
Dual-synchro equalization system for equal lifting
Oversized 53" tall carriage for superior strength and durability
Electric / hydraulic power system
Oversized A36 steel base plates
Self-lubricating dura-glide UHMW polyethylene bearing system
Safety locks in each column spaced every 3"
Automatic arm restraints
Heavy-duty 1/2" aircraft-quality equalizer cables
Oversized cable sheave diameter reduces cable fatigue
Durable, rubber lift pads with stackable adapters
Multi-piece adapter set includes four 6" stackable adapters, four 3" stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
Convenient storage is included for truck and van adapters
Versatile drop-in contact pads with stackable adapters

Lifting capacity*: 15,000 lbs. / 6,804 kg
- *Max capacity / front axle: 7,500 lbs. / 3,402 kg
- *Max capacity / rear axle: 7,500 lbs. / 3,402 kg
Overall height: 170" / 4,318 mm
Overall width (outside of base plate): 155" / 3,937 mm
Width (outside of columns): 144" / 3,658 mm
Floor to overhead switch: 165" / 4,191 mm
Inside columns: 120" / 3,048 mm
Front arm min reach: 39" / 991 mm
Front arm max reach: 60" / 1,524 mm
Rear arm min reach: 39" / 991 mm
Rear arm max reach: 60" / 1,524 mm
Min pad height: 5" / 127 mm
Rise: 69" / 1,753 mm
Lift height max (pad only): 74" / 1,880 mm
Lift height max (6" adapter): 80" / 2,032 mm
Drive-thru clearance: 106" / 2,692 mm
Motor: 220 VAC / 60 Hz / 1 Ph
Time to full rise: 45 sec
Max load per arm: 3,750 lbs. / 1,701 kg
Shipping weight: 2,986 lbs. / 1,357 kg
Shipping dimensions: 172" x 29" x 54" / 4,369 mm x 737 mm x 1,372 mm
